Shark Vacuum Brush Roller Change (Simple Steps)

I fix Shark vacuums every week in Houston homes, and brush roller problems are very common. People think motor is bad, but many times roller is just worn out. This is a easy repair.

I do this same job in customer homes all the time. Follow it step by step and you should be fine.

1. Flip the Vacuum Over and Unplug It

Unplug your Shark vaccum first. Then flip it on a table or floor where it wont slide around.

Remember to unplug from wall fully before touching bottom side. I had one customer bump power switch by mistake, not good at all.

Look at the bottom plate. You will see the brush roller inside a channel. On many Shark models its one screw, two screws, or just a latch.

2. Remove the Bottom Plate or End Cap

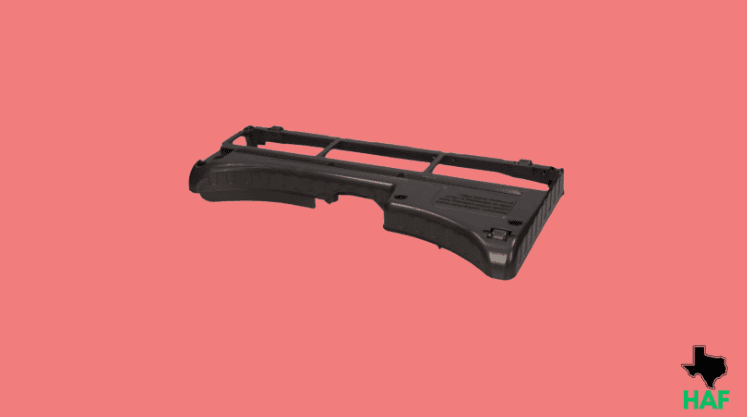

Vacuum bottom plate removal

Bottom plate removal is usually simple on Shark vacuums. Check for 1 or 2 screws, or side clips you can press.

On most Shark vacuums do this:

Locate the end cap on the side of the brush roller, it is usually a small plastic tab or coin-slot screw.
Twist or slide it off. It only goes one way, so dont force it.
Set the cap and any screws aside in one place so nothing gets lost.

Tip from the field: Take one quick phone photo before you pull parts out. It helps alot on reassembly.

3. Pull Out the Old Brush Roller

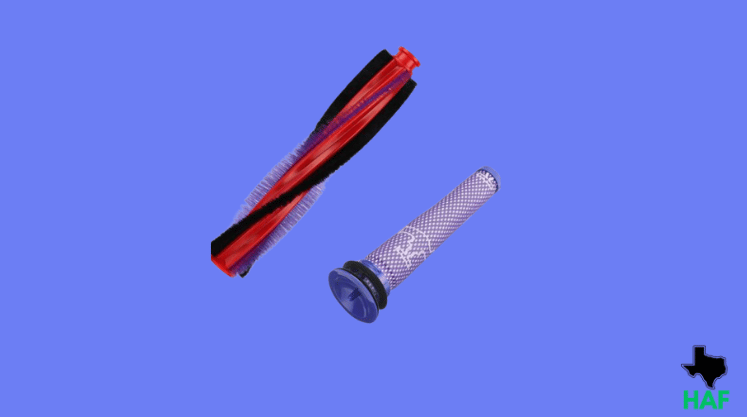

Removing old brush roller from vacuum

Once the end cap or cover is off, the brush roller usually lifts right out.

Lift roller evenly from both ends. If there is a belt, slip it off the roller side first.

Quick check before you throw it:

Hair wrapped tight on the bristles? Very common.
Bristles flat on one side? Thats why pickup got weak.
Axle cracked or bent? Not common, but I do see it sometimes.

Warning: Do not cut hair while roller is still mounted in the machine. You can damage plastic housing by mistake.

4. Clean Out the Channel Before Installing the New Roller

This is the step people skip most. Wipe the empty channel before installing new roller.

Dust and hair build up at both ends and creates drag. New roller in dirty channel will wear faster.

Wipe both roller slots and side walls with dry cloth. Dirt in this area adds drag and noise.

5. Drop In the New Brush Roller

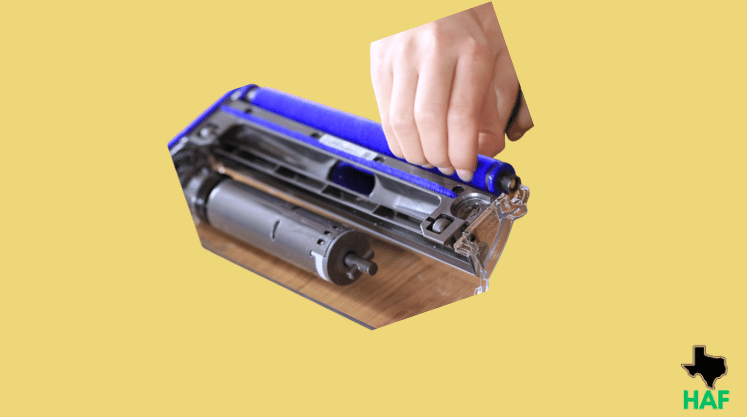

Installing new brush roller in vacuum

First line up the flat side of axle with flat slot in housing. It should fit easy one way.

Press it down evenly and spin by hand. It should turn smooth with no wobble.

First set belt on new roller first and then seat both ends into slots. Spin by hand to confirm smooth move.

6. Replace the End Cap and Test

Put end cap back on, then plug in and test 20 to 30 seconds.

You should hear normal hum, and no rattling sound. The suction should feel stronger right away.

Reinstall cover and test on hard floor.

If roller spins but pickup is still weak, check filter and belt next. On Shark vacuums, clogged filter causes alot of low-suction complaints.

If pickup is still weak after roller change, check filter and belt next.
